Maybank usually sends their bank statements monthly through email. Whenever I looked at it, I always thought I could parse the PDF file and store all the data somewhere in DB where I can do my own analytics and search through all the transactions. I’ve neglected to do this project before as I was busy with my actual job as a software engineer. On some weekend I finally found the time to work on this idea.

I started of by parsing the PDF to turn it into a text. This is done through this library pdf-parse. What I like about this library is that it can work on browser as well, so parsing the PDF can be done on the client side instead of having to send back to the server side which could incur cost and most importantly degrades the privacy aspect of the tool where your personal bank statement is sent to some random server on the internet.

Once we are done turning the bank statement into a text form, we can actually use regex magic to capture the information line by line. Before we start, we need to take a look at the format of the bank statement.

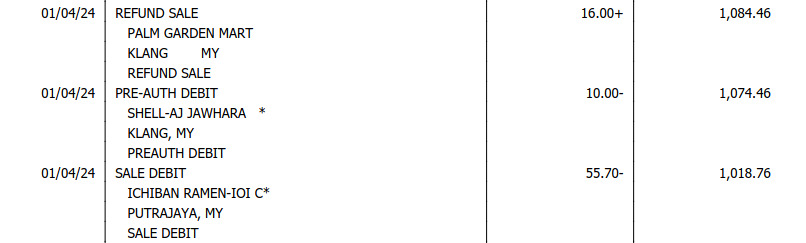

As you can see in the image above, each row has date, transaction details, transaction amount and transaction balance.

Regex magic

The following regex is used to parse and capture all the details in a single row.

/^(\d{2}\/\d{2}(?:\/\d{2})?)(.+?)(\d{1,3}(?:,\d{3})*\.\d{2})([+-])((?:\d{1,3}(?:,\d{3})*|\d*)?\.\d{2})$/gm;

1. ^(\d{2}\/\d{2}(?:\/\d{2})?) captures at least the transaction date. It does match patterns such as “26/05”. The pattern “26/05/23” is matched also. Maybank statement date formats DD/MM or DD/MM/YY are handled by our regex.

2. (.+?) captures all of those transaction details. It does so in quite a non-greedy way. Descriptions such as “TRANSFER TO ACCOUNT” or “MAYBANK2U PAYMENT” will be matched in any text between the date along with the amount.

3. This captures the amount for the transaction (\d{1,3}(?:,\d{3})*\.\d{2}). It recognizes numbers using commas to separate thousands (like “1,234.56”). The function also ensures that it has exactly two decimal places.

4. ([+-]) - It captures if the transaction credits (+) or debits (-).

5. ((?:\d{1,3}(?:,\d{3})*|\d*)?\.\d{2}) - This captures all of the balance within the account, after when the transaction occurs. It handles again numbers with separators or without commas.

The gm flags at the end are important too including g means global so matching all occurrences, with m meaning multiline in treating each line just as a separate input.

Using this regex, we can iterate through matches in our PDF text extracting structured data from each transaction line. Each match will give to us five capture groups that can correspond with date, details, amount, sign, and then balance. Each match will provide these specific groups.

Let’s look at just such a transaction line simple example of just how this all might work out.

5,678.90 from 26/05/23 MAYBANK2U PAYMENT TO XYZ 1,234.56

Our regex would capture:

• Group 1 happened “May 26, 2023”. It was a date.
• Group 2: “MAYBANK2U PAYMENT TO XYZ” (transaction details)
• Group 3: (amount) Is “1,234.56”
• Group 4: debit is indicated using “-”.
• Group 5: “Balance of 5,678.90”

Creating the site

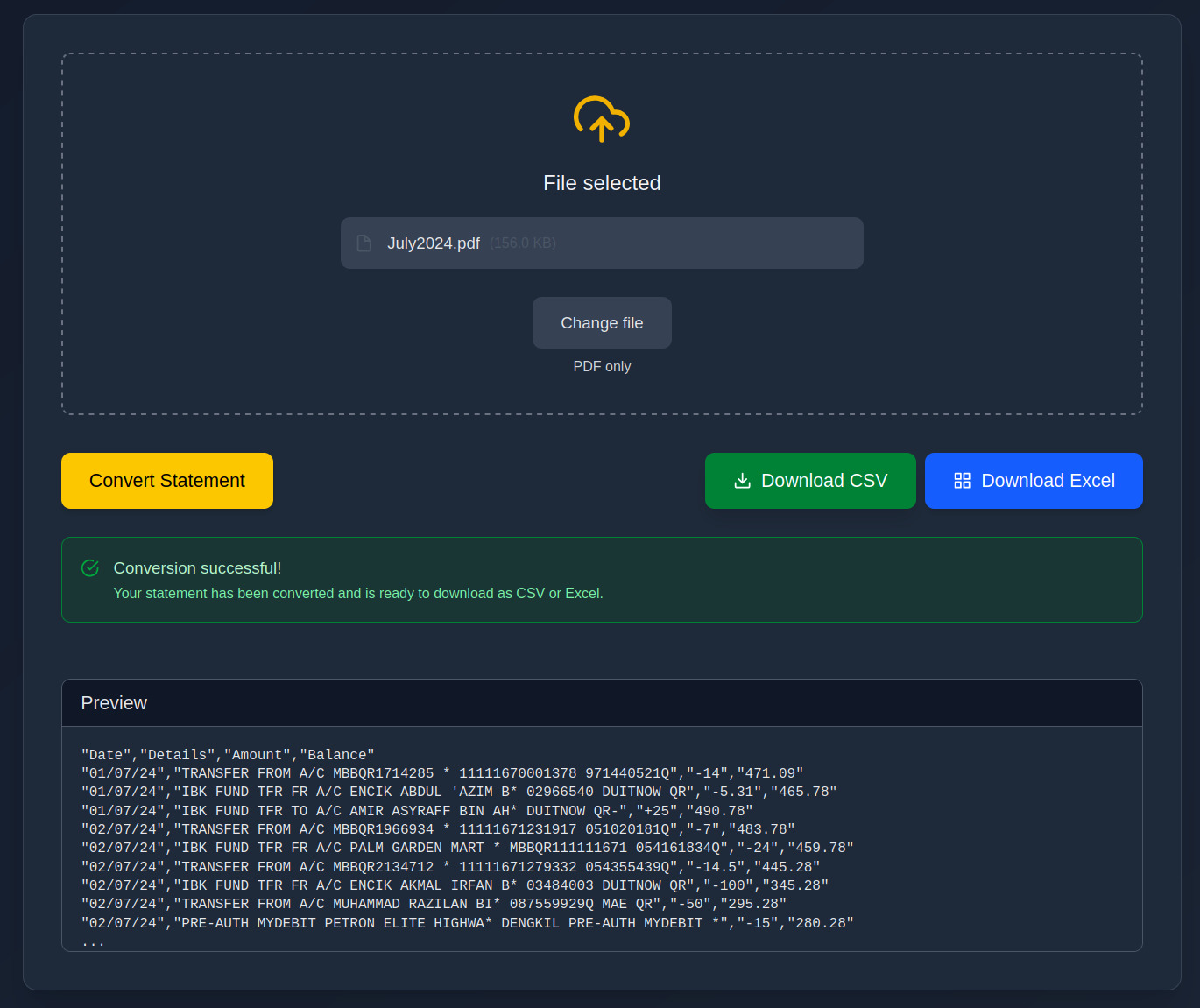

Once the parser have been figured out, let’s now create a site where user can visit and simply upload their bank stament to be converted to CSV or Excel. For this site actually it’s a bit overkill to use react but since that is the web framework I am familier the most I might as well use it. The UI of the site should be modern, intuitive, and easy to use. Even a non-techy person should know how to operate this site. You simply drop your bank statement in the box and click “Convert” and will convert the file into your desired format CSV/Excel.

Conclusion

Well that’s it, the site have been deployed and can be accessible by anyone. It is good to do programming that’s actually useful in your daily life, you’ll feel more appreciative of your work since you did yourself. Hopefully somewhere in the future I will support for more banks and credit card statements.

https://maybankconverter.issadarkthing.com
